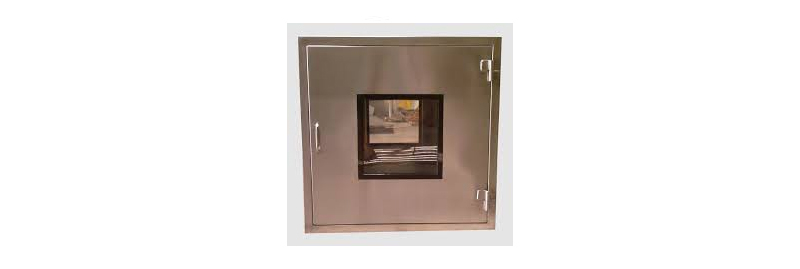

Static Pass Box

AEMS offering supreme quality Static Pass Box, which is made in compliance with world class standards. Static Pass Box is specifically designed that aids in the material transfer without much personnel movement. Furthermore, the Static Pass Box also acts as a control for entrance of contaminants in clean room and other classified areas

Specifications

• Made available in powder coated Mild Steel, SS 304 / SS 316
• Double Walled Construction
• Doors equipped with double walled flush glass view panels
• SS Handles and SS hinges
• Internal covings for easy cleaning
• Electro-magnetic Interlocking
• Indicator on either side
• Internal covings for easy cleaning
• Door Release Switch on either side

Accessories Made Available:

• Mechanical Interlocking
• Provision for ventilation with perforated grille
• U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if any of the door opens
• Three wall construction for floor mounting
• Floor mounted construction with three side wall structure & Door Drop Seal
• Support stand for mounting the pass box
• Flange for filling the gap between the pass box and the clean room wall
• Fluorescent light with interlocking arrangement to put on light when the doors are in closed position

Dimensions

Model	Work Area Dimension (L x W x H)
LCAT- SPB- 18-18-18	450 x 450 x 450 mm
LCAT- SPB- 24-24-24	610 x 610 x 610 mm

Operating Conditions

• Power Supply : 230V AC 1-Ø 50HZ
