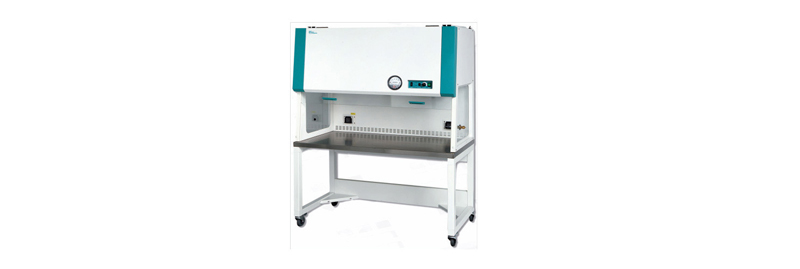

Vertical Laminar Air Flow Unit

Vertical Laminar Air Flow Unit we manufacture, supply and fabricated using best quality materials. The Vertical Laminar Air Flow Unit offered by us is widely demand owing to its high end performance and reliability. Moreover, effort able price has been fixed for the Vertical Laminar Air Flow Unit

Specifications

• High product protection by provision of ISO Class 5 particle free work area
• Able enough to handle critical process
• Protection for the samples and processes
• The work area is incessantly supplied with positive pressure HEPA filtered horizontal air flow
• vertical unidirectional airflow peed prevents contamination from operator and environment to work area
• Made available in powder coated Mild Steel and SS 304 / SS 316
• EU6 - Prefilter (95% down to 5 micron)
• EU14 - HEPA Filter - Supply (99.999% down to 0.3 micron)
• Dynamically balanced Motor-blower provided with suspension arrangement to minimize the noise level
• SS work table with due reinforcement
• Glass side panels
• Fluorescent Light with milky white diffuser
• Differential Pressure Gauge : 1 No
• On / Off Switch
• Clean Down Timer with Operation HOLD indicator
• DOP Test Port
• 5/15 Amp switch socket for external equipment

Accessories Made Available:

• Front doors (hinged/pneumatic cylinder)
• SS Air / Gas Cock
• U. V. Light with Hour Meter
• Digital Pressure Gauge in lieu of Magnehelic Gauges

Suitable For:

For handling of non hazardous products:

• Sensible to dust
• Susceptible to contamination where operator protection not necessary

Dimensions

Model	Hepa Filter Area (L x W)	Work Area Dimension (L x W x H)
LCAT-CSVF-48-24	1220 x 610 MM	1320 x 760 x 685 MM
LCAT-CSVF-36-24	915 x 610 MM	1015 x 760 x 685 MM

Operating Conditions

• Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
• Air Velocities : 0.45 ± 0.05 mps
• Air Flow : Horizontal
• Noise Level : Less than 67 dB
• Vibration Level : Minimum
• Light intensity : > 300 lux
• Power Supply : 230V AC 1-Ø 50HZ
